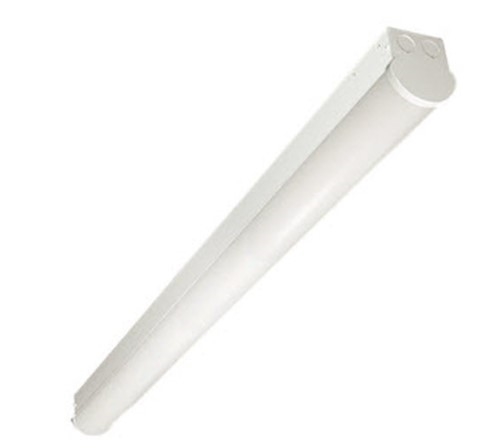

Part Number: TCPGPS2UZDA835KLS1
0-10V/Dimmable
Wattage - 20w
Voltage - 120-277v
Lumens - 2,500lm
Color Temp - 3500K
Projected Life - 50,000 Hours
Finish - White
Length - 26" (660.4mm)
Width - 3.35" (85.1mm)
Height - 3.56" (90.4mm)
- TCP's General Purpose Strip incorporates a ribbed, frosted, white diffuser lens to protect the LEDs and minimize glare, while delivering bright, uniform light.
- Uses 58% less energy than traditional fluorescent systems for instant energy savings and potential rebate eligibility
- Excellent color consistency and CRI enhance focal point color while maintaining uniformity throughout lighting installation
- Mercury-free construction is great for all environments, 0-10V dimming driver comes standard for smooth, continuous dimming
- LS1 - Leviton PIR Occupancy Sensor w/bracket and interchangeable lenses (40' or less) included
- Surface mount, suspended or pendant installation options (sold separately) make it easy to install in both new and retrofit applications
- 5 year limited factory warranty
-
-
-
-
-
- Tech Specs
-
| -
-
-
|
-
-
-
| -
-
| -
-
-
- Voltage Rating
| -
- 120-277V
| -
-
-
| Finish | -
| White | -
-
-
| Wattage | -
| 20 Watts | -
-
-
| Lumens Per Watt | -
- 130
| -
-
-
Lumens-
| -
| 2,500LM | -
-
-
| Color Temperature | -
| 3500K | -
-
-
- CRI
-
| -
| 80+ | -
-
-
- Projected Life
| -
50,000 Hours-
| -
-
-
| Material/Includes | -
| Heavy Duty Aluminum Housing/PIR Motion Sensor | -
-
-
- Dimmable
| -
| YES/0-10V | -
-
-
-
|
|
|
|
