Part Number: 9682
Part Number Description: SAL340S/T3/8C3/BK-Z10
0-10V/Dimmable
Selectable Wattage - 200/270/340w (1,000-1,500w equivalent)
Voltage - 120-277v
Selectable CCT - 30/40/50K
Lumens - 28,000/37,800/47,600lm
Beam Angle - Type III
Average Rated Life - 50,000 Hours
Finish - Black
Height - 2.67" (68mm)
Width - 12.01" (307mm)
Length - 21.65" (550mm)

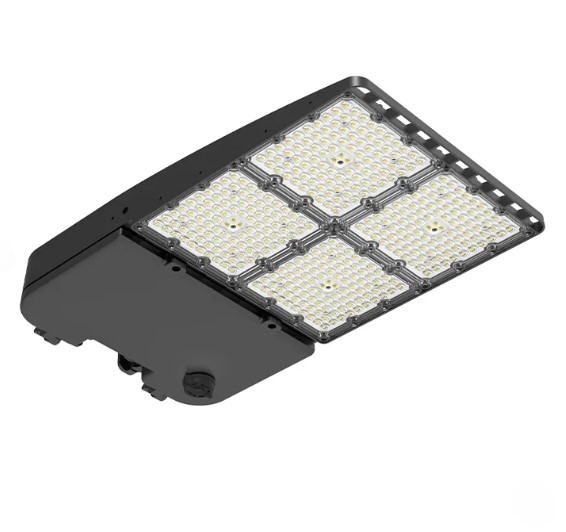

- NaturaLED Slim Area Light's are constructed with a durable, die-cast aluminum housing and excellent thermal design and is the perfect lighting solution for your parking lot, street, walkway, building flood up/down light, and/or as a sign lighter.
- Optional Accessories For Purchase: Mountings, Lens, Sensors, Photocell (Sold Separately)!
- Cable length: 1.64-ft, Contractor friendly mounting options, Low Voltage Output for sensors
- Surge Protection: 20KV, Epoxy Powder Coat Finish, Manufacturers Suggested Mounting Height: 20-40 feet
- DesignLights Consortium Premium, ETL Listed/cETL Listed, IP66 Rated, FCC, LM79, LM80, RoHS Compliant, CA Title 24
- 7 year limited factory warranty
-
-
-
-
-
- Tech Specs
-
| -
-
-
|
-
-
-
| -
-
| -
-
-
- Voltage Rating
-
| -
120-277V-
| -
-
-
| Item Type | -
| One (1) Slim Area Light | -
-
-
| Selectable Wattage | -
| 200 Watts/270 Watts/340 Watts | -
-
-
| Power Factor | -
- >0.9
| -
-
-
| Lumens Per Watt | -
| 140 | -
-
-
| Selectable CCT | -
| 3000K/4000K/5000K | -
-
-
Lumens-
| -
| 28,000LM/37,800LM/47,600LM | -
-
-
| Beam Angle | -
| Type III | -
-
-
- CRI
-
| -
| >80 | -
-
-
- Dimmable
| -
| Yes/0-10V | -
-
-
- Rated Life/Warranty
| -
- 50,000 Hours/7 Year Limited Factory Warranty
| -
-
-
- Ambient Operating Temp Range
-
| -
| -40° F to 122° F | -
-
-
| Other Information | -
| Surge Protection: 20KV, Cable Length: 1.64-FT, Mounting Height: 20-40ft | -
-
-
-
|
|
|
|
