Part Number: 9642
Part Number Description: FX10PWY18SW/42/8CCT3/BK/T5/347
0-10V/Dimmable
Wattage Selectable - 10/15/18w (100W Equivalent)
Voltage - 120-347v
Selectable CCT - 30/40/50K
Lumens - 1,200/1,800/2,305lm
Beam Angle - Type 5 Medium
Finish - Black
Height - 42" (1066mm)
Width - 10" (255mm)
Depth - 4.1" (103mm)
- NaturaLED PWY bright pathway lighting is important for the safety of pedestrian foot traffic
- The superior quality of NaturaLED's DLC pathway light fixture provides selectable wattage and selectable color temperature with glare-free lighting that produces up to 2,305 lumens.
- Built-In photocell sensor (turn on and off), Surge Protection: 10KV, Excellent Thermal Design, Ground Mounting

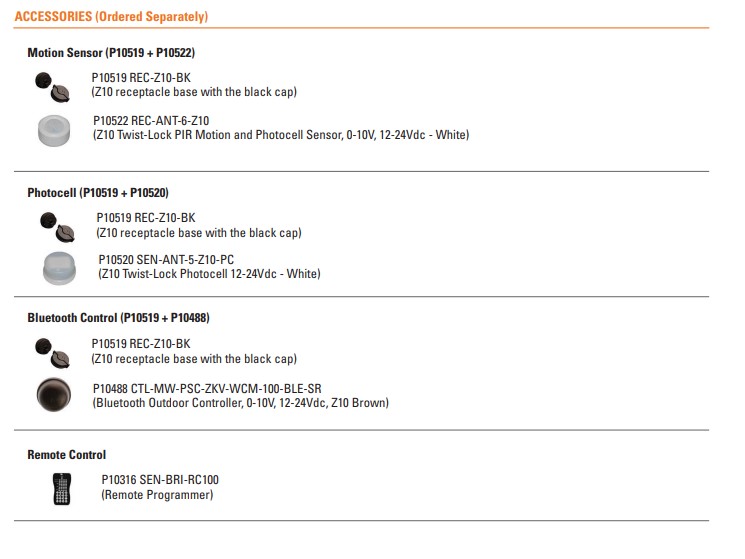

- Optional For Purchase: Emergency Driver, IR Motion Sensor, Bluetooth Control: Sold Separately!
- DLC-P, ETL/cETL Listed, FCC Compliant, LM79, LM80, RoHS Compliant, CA Title 24, IP65 Rated
- Rated Life: 50,000 hours, 5 year limited factory warranty

-
-
-
-
-
- Tech Specs
-
| -
-
-
|
-
-
-
| -
-
| -
-
-
| Operating Temperature | -
-40°F To 122°F
| -
-
-
- Item Style/Mounting
| -
| Pathway Light/Ground Mounting | Manufacturer-
| -
- NaturaLED
| -
-
-
- Warranty
-
| -
- 5 Year Limited Factory Warranty
| -
-
-
- Color
-
| -
- Black
| -
-
-
| Surge Protection | -
| 10KV | -
-
-
| Selectable CCT | -
| 3000K/4000K/5000K | -
-
-
- Voltage Type
-
| -
- 120-347V
| -
-
-
| Lumens Per Watt | -
| 120 | -
-
-
- Customizable Wattage
| -
| 10 Watts/15 Watts/18 Watts | -
-
-
- Lumens
| -
| 1,200LM/1,800LM/2,305LM | -
-
-
- CRI/Dimmable/Power Factor
| -
| >80/YES (0-10V)/>0.9 | -
-
-
-
|
|
|
|
