Part Number: 9585
Part Number Description: FXCWS44SW/48FR/8CCT3
0-10V/Dimmable
Selectable Wattage - 22/28/34/44w
Voltage - 120-277v
Selectable CCT - 35/40/50K
Selectable Lumens - 2,860/3,640/4,420/5,720lm
Beam Angle - 110°
Rated Life - 50,000 Hours
Finish - White/Frosted
Replaces/Equivalent - 4x 32W T8

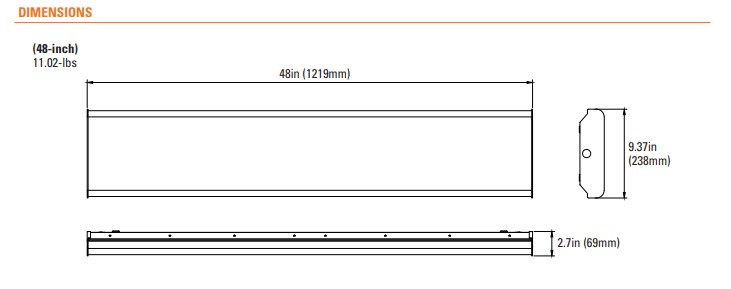

Height - 2.7" (69mm)
Length - 48" (1219mm)
Width - 9.37" (238mm)
- NaturaLED Commercial Wraps (CWS) now offer the perfect solution for your lighting needs
- The commercial utility wrap fixtures are designed for saving energy and easy installation
- NaturaLED Commercial Utility Wrap features a full wrap-around lens and is 48" long; designed for junction box installation and works great in a variety of applications
- Lightweight for easy installation, Excellent thermal design, Uniform and consistent color
- Manufacturers Suggested Mounting Height: 10ft-25ft/Surface or Hanging, Surge Protection: 2KV, IP Rating: Damp Location
- Optional For Purchase: Emergency Driver, Surge Protector, Wire Guard, Replacement Lens
- DLC Listed, UL Certified, FCC, LM79, LM80, CA Title 24, RoHS Compliant
- 5 year limited factory warranty
-
-
-
-
-
- Tech Specs
-
| -
-
-
|
-
-
-
| -
-
| -
-
-
- Voltage Rating/Frequency
| -
- 120~277V/50/60Hz
| -
-
-
| Lumens Per Watt | -
- 130
| -
-
-
| Selectable Wattage | -
| 22/28/34/44 Watts | -
-
-
- Dimmability
| -
- 0-10V
| -
-
-
Selectable Lumens-
| -
| 2,860LM/3,640LM/4,420LM/5,720LM | -
-
-
| Selectable CCT | -
| 3500K/4000K/5000K | -
-
-
- CRI
-
| -
>80-
| -
-
-
- Rated Life
-
| -
50,000 Hours-
| -
-
-
- Replaces
| 3x 32W T8/4x 32W T8 | -
-
-
- Ambient Operating Temp Range
-
| -
| -13° F to 104° F | -
-
-
- Auxiliary (12V) Line
| -
| Yes | -
-
-
-
|
|
|
|
