NaturaLED 9561 - FXVTL30SW/24FR/8CCT3 - Vapor Tight Linear CCT3 - Selectable Wattage 20/25/30W - Selectable CCT 35/40/50K - 2FT - 120-277V - White

Download The Installation PDF

Download The Spec Sheet

Price: $70.75

Qty:

Description

Technical Specs

Shipping Time

Part Number: 9561
Part Number Description: FXVTL30SW/24FR/8CCT3

0-10V Dimming

Selectable Wattage - 20/25/30w
Voltage - 120-277v
Selectable CCT - 35/40/50K
Lumens - 2,613/3,250/4,156lm
Replaces - 3x 17W T8/2x 32W T8
NEMA Enclosure Type - Type 4X
Rated Life L70 - 50,000 hours

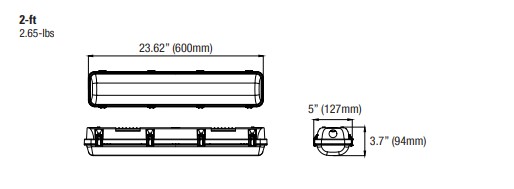

Height - 3.7" (94mm)
Width - 5" (127mm)
Length - 23.6" (600mm)

NaturaLED Linear Vapor Tight is housed in a polycarbonate silicon perimeter gasket with brackets for mounting
Engineered for powerful lighting, the IP66 Rated LED Vapor Tight Linear Fixture is designed to replace fluorescent strip fixtures
Using 65% less energy and operating for up to 50,000 average life hours, these fixtures come with selectable wattage and color temperatures
Designed for maximum operation in commercial environment, Lighter weight housing for easy installation
Stainless steel hasps and clips, Surge Protection: 4KV, Manufacturers Suggested Mounting Height: 10ft
Optional For Purchase: Microwave Motion Sensor/Remote Programmable Microwave Motion Sensor, Remote Programmer, Mounting Bracket, Emergency Driver, Surge Protector, Wire Guard
DLC Listed, ETL/ETL Sanitation Rated, NEMA Enclosure Type 4X, FCC, IP66, LM79, LM80, RoHS Compliant, CA Title 24
5 year limited factory warranty
