Part Number: 7722
Part Number Description: LED-FXPNL50/2X4/835G1
1-10V/Dimmable
Wattage - 50w
Voltage - 120-277v
Color Temp - 3500K
Lumens - 5,135lm
Beam Angle - 110°
Rated Life - 50,000 hours
Finish - White
Equivalent - 120-130w

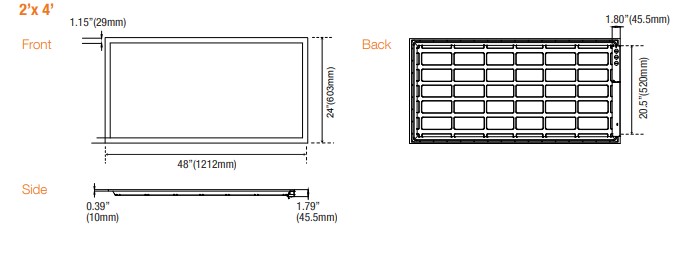

Height - 1.79" (45.5mm)
Length - 48" (1212mm)
Width - 24" (603mm)
- NaturaLED features qualified DLC Premium and Standard Flat Panels (PNL), have an integrated LED Technology with a low profile design
- The Flat Panels are easily installed with maximum energy savings; comes in standard configurations of 1'x4', 2'x2', and 2'x4' for mounting in T-Bar/Grid ceilings or optional surface mount box kits
- Lighter weight housing for easy installation, Built-In Surge Protection: 1KV, L70 Rated Chip for over 100,000 projected life hours
- Uniform and consistent color from edge to edge
- Optional For Purchase: Surface Mount Kit, Flange Mount Kit, Emergency Driver: Sold Separately!
- DesignLights Consortium Qualified, UL Listed, FCC Compliant, LM79, LM80, RoHS Compliant, CA Title 24, Damp Location Rated
- 5 year limited factory warranty
-
-
-
-
-
- Tech Specs
-
| -
-
-
|
-
-
-
| -
-
| -
-
-
- Voltage Rating
-
| -
- 120-277V
| -
-
-
- Voltage Frequency/Power Factor/THD
| -
- 50/60Hz/ >0.9/<20%
| -
-
-
- Wattage
| -
| 50 Watts | -
-
-
| Beam Angle | -
- 110°
| -
-
-
- Lumens/Lumens Per Watt
| -
| 5,135LM/103 | -
-
-
| CCT | 3500K | -
-
-
- CRI
-
| -
80-
| -
-
-
- Rated Life/Warranty
| -
- 50,000 Hours/5 Year Limited Factory Warranty
| -
-
-
- Dimming
| -
| 1-10V/Dimmable | -
-
-
- Ambient Operating Temp Range
-
| -
| -4° F to 104° F | -
-
-
| Equivalent | -
| 120-130 Watts | -
-
-
-
|
|
|
|
