Part Number: LED-WPM-20W-TRI-F-BZ-PC
Non-Dimmable
Wattage - 20w
Voltage - 120-277v
Selectable Color Temp - 30/40/50K
Lumens - 2,860lm
Beam Angle - 100°/Semi-Cutoff
BUG - B1-U3-G2
Average Rated Life (L70) - 70,000 Hours
Finish - Bronze
Height - 8.6"
Width - 5.8"
Depth - 3.1"

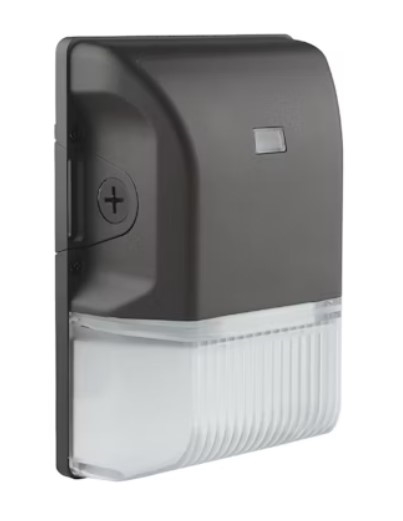

- EnVisionLED M-Line: Mini Wall Pack
- Lens: Clear acrylic with optics
- Sturdy die-cast aluminum housing finished with corrosion free powder coat
- Traditional metal-halide wall pack size, Instant-On to full brightness
- Surge Protection: 6KV, Photocell Included, Three 1/2" Knockouts: (1) One on each side for convenient installation
- UL Listed, DLC Listed, ROHS Compliant, Approved for CA T24, FCC CFR 47, GCC Part 15, Subpart B:2017,Wet Location Rated, Impact Rating: IK08
- 5 year limited factory warranty
-
-
-
-
-
- Tech Specs
-
| -
-
-
|
-
-
-
| -
-
| -
-
-
| Voltage Rating | -
| 120-277V | -
-
-
| Beam Angle/BUG | -
100°/B1-U3-G2
| -
-
-
| Wattage | -
| 20 Watts | -
-
-
| Power Factor | -
- >0.9
| -
-
-
| Knockouts | -
| Three (3) 1/2" Knockouts | -
-
-
| Photocell | -
| Included | -
-
-
Lumens-
| -
| 2,860LM | -
-
-
| Selectable 3-CCT | -
| 3000K/4000K/5000K | -
-
-
- CRI
-
| -
| >80 | -
-
-
- Dimmable
| -
- NO
| -
-
-
| Lens | -
| Clear Acrylic with Optics | -
-
-
| Operating Temperature | -
| -40° F to 122° F | -
-
-
| Material/Finish | Die Cast Aluminum/Bronze | -
-
-
-
|
|
|
|
 |
|
 |
|
