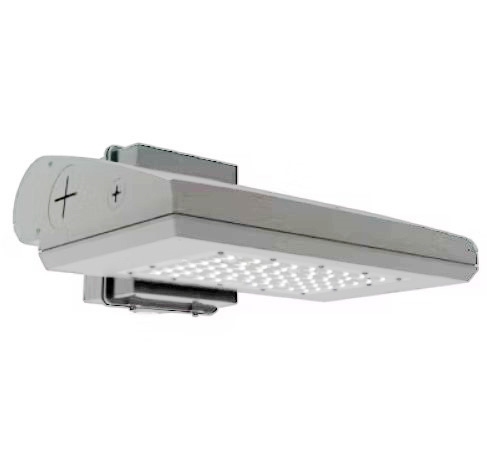

Part Number: LED-WPFC-ARC-3P65-TRI-WH-PC
120-347V 0-10V Dimmable (Dim-To-Off)
Selectable Wattage - 30/50/65w
Voltage - 120-347v
Selectable CCT - 30/40/50K
Lumens - 3,900/6,500/8,450lm
Beam Angle - Type III (Standard)
Average Rated Life (L70) - 70,000 Hours
Finish - White
Height - 5.92"
Width - 9.71"
Depth - 8.74"
- EnVisionLED ARCY-Line: Full Cut Off Wall Packs: Sturdy die-cast aluminum housing finished with corrosion free powder coat.
- Full Cut-Off Dark Sky Compliant when faced down, -10° down to 20° up tilt adjustable design, Instant-On to full brightness
- Photocell is included with an easy quick disconnect, Beam Angle: Type III Standard IV or V available
- Fixture can be mounted face up or face down, mounts to junction box
- Lens: Clear acrylic with optics
- Built-in 6Kv Surge protection, Bronze Finish (Black, White, and Custom Finishes available)
- ETL Listed, DLC Premium Listed, RoHS Compliant, Approved for CA T24, FCC CFR 47, GCC Part 15, Subpart B:2017, IP Rating: Wet Location IP66, Impact Rating: IK08
- 5 year limited factory warranty
-
-
-
-
-
| Tech Specs |
|---|
|
| | | Voltage Rating | 120-347V | | Beam Angle | Type III (Standard), IV or V Available | | Selectable Wattage | 30 Watts/50 Watts/65 Watts | | Power Factor | >0.9 | | Dimmable | YES/UNV: 120-347V 0-10V Dimmable (Dim-To-Off) | | Avg. Rated Life (L70) | 70,000 | | Lumens | 3,900LM/6,500LM/8,450LM | | Selectable CCT | 3000K/4000K/5000K | | CRI | >80 | | Operating Temperature | -40°F To 122°F
| | Manufacturer | EnVisionLED Lighting | | Item Type | ARCY-Line: Full Cut Off Wall Pack | | Finish | White (Custom Finishes Available, Lead Times Vary) |
| -
-
-
|
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Features
- Optional For Purchase Pre-Installed Factory Add-On's:
90 Minute Emergency Battery Backup
HB01-DMS-C: Bi-Level Motion + Daylight Sensor
S-BMS-EXT-1: Bi-Level Motion + Daylight Sensor
S-BMS-EXT-1-BT: Bi Level Motion + Daylight Sensor W/Bluetooth Control (ENVISION SMART APP)
SG-20KV-UNV: 20KV Surge Protector
Custom Finishes: Black, White, Gray Standard, Custom RAL Available: Prices/Lead Times Vary
Call our Customer Service Line For Pricing/More Information: 877-235-0020. Prices are in addition to original product purchase price. Ask about additional lead times.
|
|
|
|
|
|
|
