Part Number: LED-WPFC-5P80-TRI-BZ-PC
0-10V/Dimmable
Selectable Wattage - 16/32/48/64/80w
Voltage - 120-277v
Selectable CCT - 30/40/50K
Lumens - Depends on Wattage Selection
Beam Angle - Type III (Standard)
BUG - B3-U2-G2
Average Rated Life (L70) - 70,000 Hours
Finish - Bronze
Height - 6.5"
Width - 14.1"
Depth - 9.25"

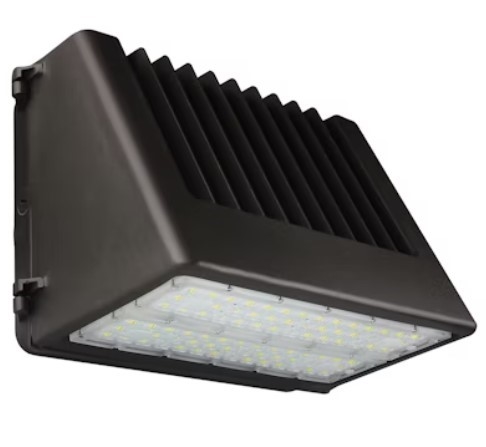

- EnVisionLED FC-Line: Full Cut Off Wall Packs: Sturdy die-cast aluminum housing finished with corrosion free powder coat.
- Full Cut-Off Dark Sky Compliant, Instant-On to full brightness
- Photocell is included with an easy quick disconnect, Beam Angle: Type II (Standard), Type II and Type IV available
- Lens: Clear acrylic with optics, Five (5) 1/2" knockouts: One (1) on each side for convenient installation
- Built-in 6Kv Surge protection, Bronze Finish (Black, White, and Custom Finishes available)
- UL Listed, DLC Listed, RoHS Compliant, Approved for CA T24, IESNA LM-79 and LM-80 tests available, FCC CFR 47, GCC Part 15, Subpart B:2017, IP Rating: Wet Location, Impact Rating: IK08
- 5 year limited factory warranty
![]()
