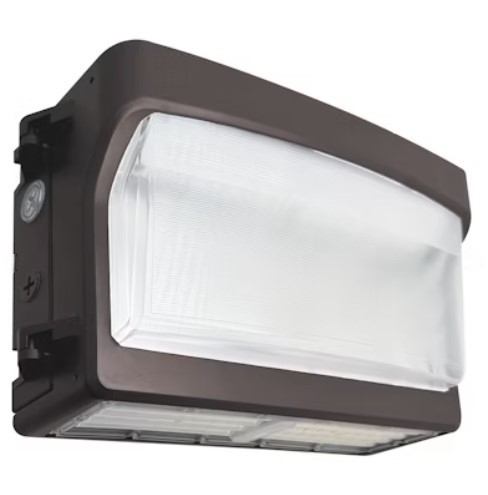

Part Number: LED-WPF-FC-21-3P100-TRI-BZ-PC
0-10V/Dimmable
3-Power Selectable/Wattage - 100/80/60W
Voltage - 120-277v
Selectable CCT - 30/40/50K
Lumens - 15,600/13,000/10,400lm
Beam Angle - 90°
BUG - B3-U3-G3
Average Rated Life (L70) - 70,000 Hours
Finish - Bronze (Custom finishes available, lead times vary)
Height - 9.4"
Width - 14"
Depth - 4.7"
- EnVisionLED Full-FC-Line: Full Cut Off Wall Packs Wall Pack; Sturdy die-cast aluminum housing finished with corrosion free powder coat
- Traditional plus Full Cut Off Mode, Slim size and easy to install
- Lens: Front - PC Ribbed Lens/Bottom - PC With Optics, Instant-On to full brightness, 0-10V Dimmable
- Photocell is included with an easy quick disconnect
- Surge Protection: 6KV, Photocell Included, Five 1/2" Knockouts: One (1) on each side for convenient installation
- UL Listed, DLC Listed, ROHS Compliant, Approved for CA T24, FCC CFR 47, GCC Part 15, Subpart B:2017,Wet Location Rated
- 5 year limited factory warranty
-
-
-
-
-
- Tech Specs
-
| -
-
-
|
-
-
-
| -
-
| -
-
-
| Voltage Rating | -
| 120-277V | -
-
-
| Beam Angle/BUG | -
90°/B3-U3-G3
| -
-
-
| Wattage/5-Power Selectable | -
| 100 Watts/80 Watts/60 Watts | -
-
-
| Power Factor | -
- >0.9
| -
-
-
| Knockouts | -
| Five (5) 1/2" Knockouts | -
-
-
| Photocell | -
| Included | -
-
-
Lumens-
| -
| 15,600LM/13,000LM/10,400LM | -
-
-
| Selectable 3-CCT | -
| 3000K/4000K/5000K | -
-
-
- CRI
-
| -
| >80 | -
-
-
- Dimmable
| -
| 0-10V | -
-
-
| Lens | -
| Front: PC Ribbed/Bottom: PC w/ Optics | -
-
-
| Operating Temperature | -
| -4° F to 122° F | -
-
-
| Finish | Bronze (Custom Finishes Available/Lead Times Vary) | -
-
-
-
|
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Features
- Pre-Installed Factory Add-On's (Added Fee's/Lead Times Vary):
90 Minute Emergency Backup 30 to 120 DEG F
90 Minute Emergency Backup (Cold Weather) -4 to 120 DEG F
Bi Level Motion and Daylight Sensor
Bi Level Motion and Daylight Sensor W/ Bluetooth
20KV Surge Protector
