Part Number: LED-RDL-JBX-5-6-15W-5CCT-WH-SM
Triac/Dimmable
Wattage - 15w Voltage 120v Lumens - 1,125lm
Selectable CCT - 27/30/35/40/50K
Beam Angle - 100° Flood
Avg. Rated Life (L70) - 50,000 Hours
Finish - White
Height - 3.73"
Outer Diameter - 7.36"

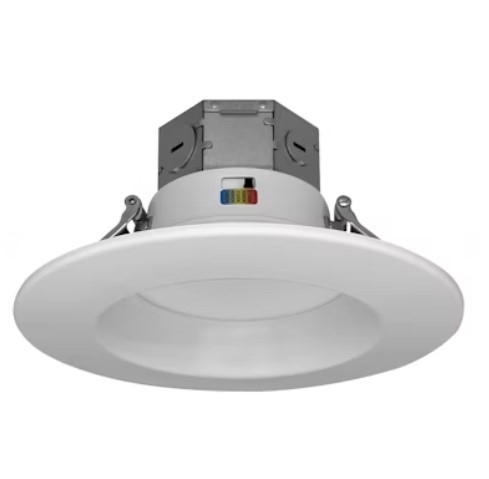

- EnVisionLED 5/6" Retrofit Kit Downlight has a metal housing and trim for better heat dissipation.

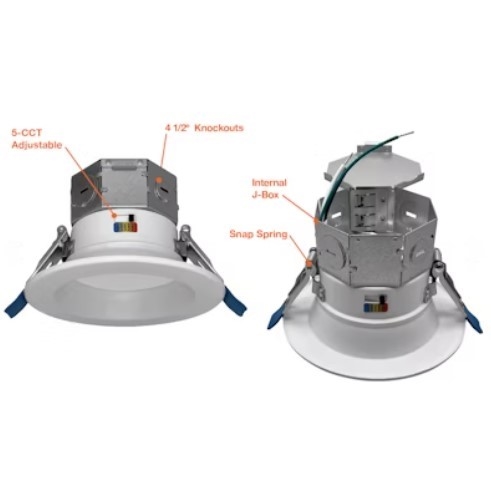

- SnapTrim Can-less: Springs clips with remote j-box eliminates can, Flicker Free, Built in 2.5Kv Surge Protector
- No housing needed in remodel applications, tension clips mount into 1/2" and 1.5" thick ceiling
- This fixture does not fit into a recessed can, Cut-Out Dimension 6": 6-1/4"
- Can be removed from below the ceiling for service and replacement
- Pre-wired junction box with circuit wiring built in (3 in/3 out), 3 Step MacAdam Ellipses, Lens: Frosted PC, Non-yellowing
- Optional For Purchase: Emergency Backup available delivers full lumens in EM mode up to 25W, New Construction Plate (sold separately)
- ETL Listed, Energy Star Certified, Wet Location Rated, CA Title 24 JA8-2022 CEC Listed, FCC CFR 47, GCC Part 15, Subpart B:2017, IC Rated and ASTM-E283 Air-Tight, Complies with UL 263, ASTM E119, CAN ULC S101
- 5 Year Limited Factory Warranty
-
-
-
-
-
- Tech Specs
-
| -
-
-
|
-
-
-
| -
-
| -
-
-
- Dimmable
-
| -
- Yes/Triac
| -
-
-
- Item Type
-
| -
- Recessed Lighting LED Retrofit Kit
| -
-
-
- Item Style
-
| -
| 5/6" LED Retrofit Kit Downlight | -
-
-
| Beam Angle | 100°
| -
-
-
| Manufacturer | EnVisionLED | -
-
-
| Finish | -
- White
| -
-
-
| Lumens | -
| 1,125LM | -
-
-
| Wattage | -
| 15 Watts | -
-
-
| Warranty | -
| 5 Year Limited Factory | -
-
-
| CRI | -
| >90 | -
-
-
| Selectable CCT | -
| 2700K/3000K/3500K/4000K/5000K | -
-
-
| Voltage | -
| 120V | -
-
-
-
|
|
|
|
