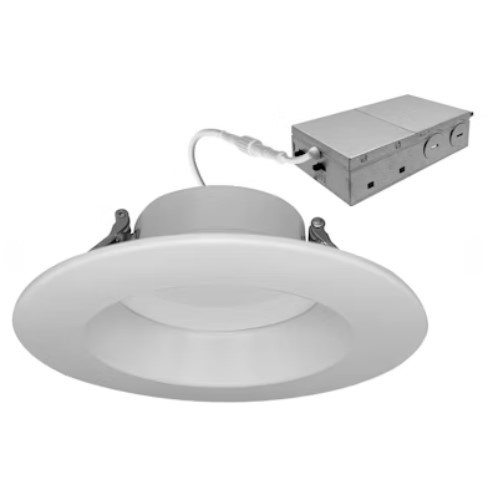

EnVisionLED LED-RDL-EX-6-3P18-5CCT-WH-SM - 6" External J-Box Downlight - 12/15/18W - 5-CCT 27/30/35/40/50K - 120V - White


EnVisionLED LED-RDL-EX-6-3P18-5CCT-WH-SM
CUSTOMER REVIEWS


Alternative Views:



Download The Spec Sheet

Price: $20.99


Free Shipping
Qty:

Description Technical Specs Shipping Time

Part Number: LED-RDL-EX-6-3P18-5CCT-WH-SM

Triac/Dimmable

Selectable Wattage - 12/15/18w
Voltage - 120v
Lumens - 700/1,100/1,500lm
Selectable CCT - 27/30/35/40/50K
Beam Angle - 100° Flood
Avg. Rated Life (L70) - 50,000 Hours
Finish - White

Fixture Height - 2.3"
Fixture Outer Diameter - 7.36"

  • EnVisionLED 6" External J-Box Downlight has a metal housing and trim for better heat dissipation.
  • SnapTrim Can-less: Springs clips with remote j-box eliminates can, Flicker Free, Built in 2.5Kv Surge Protector
  • Remote J-Box can be mounted up to 12' away from fixture
  • No housing needed in remodel applications, tension clips mount into 1/2" and 1.5" thick ceiling
  • This fixture does not fit into a recessed can, Cut-Out Dimension 6": 6-1/4"
  • Can be removed from below the ceiling for service and replacement
  • Pre-wired junction box with circuit wiring built in (3 in/3 out), 3 Step MacAdam Ellipses, Lens: Frosted PC, Non-yellowing
  • Optional For Purchase: Emergency Backup available delivers full lumens in EM mode up to 25W, New Construction Plate (sold separately)
  • ETL Listed, Energy Star Certified, Wet Location Rated, CA Title 24 JA8-2022 CEC Listed, FCC CFR 47, GCC Part 15, Subpart B:2017, IC Rated and ASTM-E283 Air-Tight, Complies with UL 263, ASTM E119, CAN ULC S101
  • 5 Year Limited Factory Warranty
