Part Number: LED-RDL-4-3P12-5CCT-UNV-0-10V
0-10V/Dimmable
Selectable Wattage - 6/9/12w Voltage - 120-277v Lumens - 500/750/1,000lm
Selectable CCT - 27/30/35/40/50K
Beam Angle - 100° Flood
Avg. Rated Life (L70) - 50,000 Hours
Finish - White
Height - 3"
Outer Diameter - 5.1"

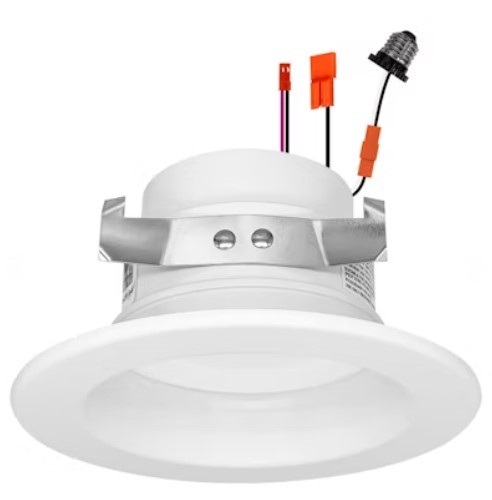

- EnVisionLED 4" Retrofit Kit Downlight has a die-cast aluminum housing and trim for better heat dissipation.
- 120-277V 0-10V Dimmable down to 5%, Flicker Free, Built in 2.5Kv Surge Protector
- Ideal for both remodel and new construction applications
- Fixture includes orange LED quick connect and E26 base adapter
- Fixture included 0-10V dimming wires with quick connect to EnVisionLED 0-10V can
- Retrofit into existing housing with E26 Socket, 4": Spring clips fit into most 4" compatible recessed cans
- Can be removed from below the ceiling for service and replacement
- 3 Step MacAdam Ellipses, Lens: Frosted Acrylic, Non-yellowing
- Optional For Purchase: Emergency Backup available delivers full lumens in EM mode up to 25W, New Construction Plate (sold separately)
- ETL Listed, Energy Star Certified, Wet Location Rated, CA Title 24 JA8-2022 CEC Listed, Meets LM-79 and LM-80 Standards, FCC CFR 47, GCC Part 15, Subpart B:2017, IC Rated and ASTM-E283 Air-Tight, Complies with UL 263, ASTM E119, CAN ULC S101
- 5 Year Limited Factory Warranty
-
-
-
-
-
- Tech Specs
-
| -
-
-
|
-
-
-
| -
-
| -
-
-
- Dimmable
-
| -
- Yes/0-10V
| -
-
-
- Item Type
-
| -
- Recessed Lighting LED Retrofit Kit
| -
-
-
- Item Style
-
| -
| 4" LED Retrofit Kit Downlight | -
-
-
| Beam Angle | 100°
| -
-
-
| Manufacturer | EnVisionLED | -
-
-
| Finish | -
- White
| -
-
-
| Lumens | -
| 500LM/750LM/1,000LM | -
-
-
| Selectable Wattage | -
| 6 Watts/9 Watts/12 Watts | -
-
-
| Warranty | -
| 5 Year Limited Factory | -
-
-
| CRI | -
| >90 | -
-
-
| Selectable CCT | -
| 2700K/3000K/3500K/4000K/5000K | -
-
-
| Voltage | -
| 120-277V | -
-
-
-
|
|
|
|
