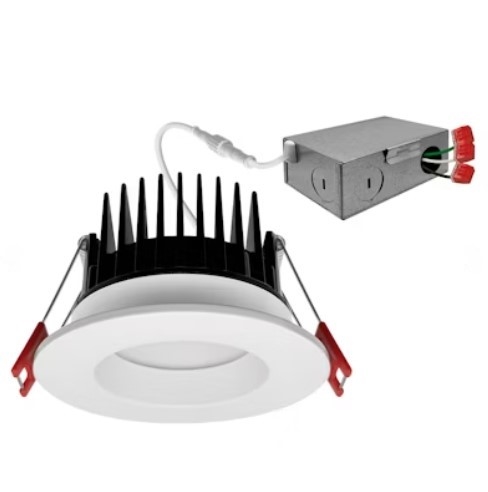

Part Number: LED-MDJBX-3-10W-5CCT-WH-R
Triac/Dimmable
Wattage - 10w Voltage - 120V Lumens - 800lm
Selectable CCT - 27/30/35/40/50K
Beam Angle - 110° (standard)
Avg. Rated Life(L70) - 50,000 Hours
Finish - White/White
Fixture Height - 3.05"
Fixture Inner Diameter - 2.3"
Fixture Outer Diameter - 3.7"
- Optional New Construction available (sold separately), Standard White Round Trim included: Optional Trims available (sold separately)
- No housing needed in remodel applications, tension clips mount into 1/2" to 1.5" thick ceiling, this fixture does not fit into recessed can
- Die-cast aluminum housing for better heat dissipation, Built in 2.5Kv Surge Protector, Flicker Free, 3 Step MacAdam Ellipses
- Pre-wired junction box with circuit wiring built in (3 in/3 out), Can be removed from below the ceiling for service and replacement
- Cut Out Dimension 3": 3-1/4"
- SnapTrim Canless: Spring clips with remote j-box eliminates can
- Optional: Emergency Backup available: Delivers full lumens in EM mode up to 25W (sold separately)
- ETL Listed, Energy Star Certified, CA Title 24 JA8-2022 CEC Listed, IP54 Wet Location Rated, IC Rated and ASTM-E283 Air-Tight, FCC CFR 47, GCC Part 15, Subpart B:2017, Complies with UL 263, ASTM E119, CAN ULC S101
- 5 Year Limited Factory warranty

-
-
-
-
-
- Tech Specs
-
| -
-
-
|
-
-
-
| -
-
| -
-
-
- Dimmable
-
| -
- YES/Triac
| -
-
-
- Item Type
-
| -
- Recessed Lighting LED Remote J-Box
| -
-
-
- Item Style
-
| -
| SnapTrim-Line: Frosted Round (Can-Less) Downlight | -
-
-
- Manufacturer
| EnVisionLED Lighting | -
-
-
| CRI | >90 | -
-
-
| Finish | -
| White/White | -
-
-
| Lumens | -
| 800LM | -
-
-
| Wattage | -
| 10 Watts | -
-
-
- Adjustability
| -
| This Fixture Does Not Fit Into A Recessed Can | -
-
-
| Avg. Rated Life(L70) | -
| 50,000 Hours | -
-
-
| Selectable CCT | -
| 2700K/3000K/3500K/4000K/5000K | -
-
-
| Warranty | -
| 5 Year Limited Factory Warranty | -
-
-
-
|
|
|
|
