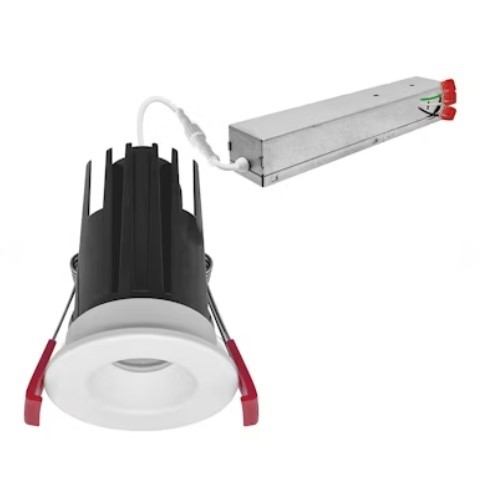

Part Number: LED-DLJBX-1RG-7W-5CCT-WH-R
Triac/Dimmable
Wattage - 7w Voltage - 120V Lumens - 550lm
Selectable CCT - 27/30/35/40/50K
Beam Angle - 38° Flood (standard)
Avg. Rated Life(L70) - 50,000 Hours
Finish - White/White
Fixture Height - 3.5"
Fixture Inner Diameter - 1"
Fixture Outer Diameter - 2.5"
- Standard white round trim included, Various sizes, finishes, and trims available (sold separately), New Construction plate available (sold separately)
- Metal housing and trim for better heat dissipation, SnapTrim Can-less: Spring clips with remote j-box eliminates can, This fixture does not fit into a recessed can
- No housing needed in remodel applications, tension clips mount into 1/2" and 1.5" thick ceiling, Can be removed from below the ceiling for service or replacement
- Optional emergency backup available: delivers full lumens in EM mode (sold separately)
- 120V Triac Dimmable, Built-in 2.5Kv Surge Protector, Flicker Free, Cut-Out Dimension: 2 1/8"
- Pre-wired junction box with circuit wiring built in (3 in/3 out), 3 Step MacAdam Ellipses, Lens: Clear Cob
- ETL Listed, Energy Star Certified, CA Title 24 JA8-2022 CEC Listed, IP-54 Wet Location Rated, FCC CFR 47, GCC Part 15, Subpart B:2017, IC Rated and ASTM-E283 Air-Tight, Complies with UL 263, ASTM E119, CAN ULC S101
- 5 Year Limited Factory warranty

-
-
-
-
-
- Tech Specs
-
| -
-
-
|
-
-
-
| -
-
| -
-
-
- Dimmable
-
| -
- YES/Triac
| -
-
-
- Item Type
-
| -
- Recessed Lighting LED Retrofit Trim
-
| -
-
-
- Item Style
-
| -
| 1" LED Round Regressed Downlight with 5-CCT Switch | -
-
-
- Manufacturer
| EnVisionLED Lighting | -
-
-
| CRI | >90 | -
-
-
| Finish | -
- White
| -
-
-
| Lumens | -
| 550LM | -
-
-
| Wattage | -
| 7 Watts | -
-
-
- Dimensions
| -
| See Illustration/Spec Sheet | -
-
-
| Avg. Rated Life(L70) | -
| 50,000 Hours | -
-
-
Selectable Color Temperature-
| -
| 2700K/3000K/3500K/4000K/5000K | -
-
-
| Warranty | -
| 5 Year Limited Factory Warranty | -
-
-
-
|
|
|
|
