Part Number: LED-CYE-UD-3-3P30-TRI-WH-PC
0-10V/Dimmable
Selectable Wattage - 10/20/30w
Voltage - 120-277v
Selectable CCT - 30/40/50K
Lumens - 1,200/2,400/3,600lm
Avg. Rated Life (L70): 50,000 Hours
Beam Angle - 60°
BUG - B2-U2-G2
Finish - White
Height - 10.5"
Width - 4.7"
Depth - 5"

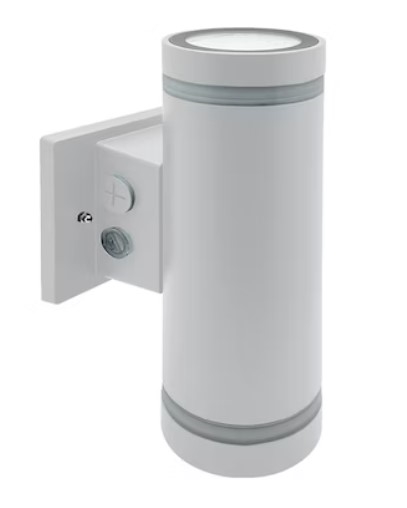

- EnVisionLED: M-Line: 3" Edge-Lit Cylinder Up/Down Light
- Sturdy die-cast aluminum housing finished with corrosion free powder coat
- Photocell included on each fixture. Easy disconnect.
- 1.5' STJW 18.3 AWG cable whip included
- Illuminates up and down and edge, Instant-On to full brightness
- Built in 6kV surge protection, Lens: Clear glass with optics
- Mounts to 3" or 4" junction box, Covers a standard 4" recessed j-box
- UL Listed, Approved for CA T24, FCC CFR 47, GCC Part 15, Subpart B:2017, IP Rating: Wet Location IP65
- 5 year limited factory warranty
-
-
-
-
-
- Tech Specs
-
| -
-
-
|
-
-
-
| -
-
| -
-
-
- Voltage Rating
-
| -
120-277V-
| -
-
-
| Item Type | -
- 3" Edge-Lit Cylinder Up/Down Light
| -
-
-
| Selectable Wattage | -
| 10 Watts/20 Watts/30 Watts | -
-
-
| Power Factor | -
- >0.9
| -
-
-
| Mounting | -
| 3" or 4" J-Box/Covers a Standard 4" Recessed J-Box | -
-
-
| Selectable CCT | -
| 3000K/4000K/5000K | -
-
-
Lumens-
| -
| 1,200LM/2,400LM/3,600LM | -
-
-
| Beam Angle/BUG | -
60°/B2-U2-G2
| -
-
-
- CRI
-
| -
| >80 | -
-
-
- Dimming
| -
| YES/UNV: 120-277V 0-10V | -
-
-
- Rated Life (L70)
| -
- 50,000 Hours
-
| -
-
-
- Ambient Operating Temp Range
-
| -
- -40° F to 122° F
| -
-
-
| Finish | -
| White | -
-
-
-
|
|
|
|
 |
|
 |
|
