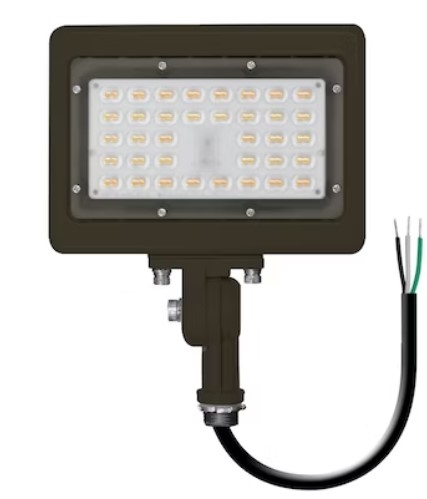

EnVisionLED LED-ARL-3P80-TRI-BZ-KN-PC - Mini Area Flood Lights - 60/70/80W - 3-CCT 30/40/50K - 120-277V - Knuckle/Photocell - Bronze


EnVisionLED LED-ARL-3P80-TRI-BZ-KN-PC
CUSTOMER REVIEWS


Alternative Views:



Download The Installation PDF



Download The Spec Sheet

Price: $121.99


Qty:

Description Technical Specs Shipping Time

Part Number: LED-ARL-3P80-TRI-BZ-KN-PC

0-10V/Dimmable


Selectable Wattage - 60/70/80w
Voltage - 120-277v
Selectable CCT - 30/40/50K
Lumens - 8,400/9,800/11,200lm
Beam Angle - 120°
Finish - Bronze
Base - Knuckle Mount

Height (with base) - 9.6"
Width - 8.5"
Depth - 2"

  • Sturdy die-cast aluminum housing finished with corrosion free powder coat
  • 1.5' STJW 18.3 AWG cable whip included
  • Photocell included on each fixture. Easy disconnect. Instant-On to full brightness.
  • Two Standard Arms: 1/2" Knuckle Mount, Trunnion Mount, Adjustable 180° arms (please see above which mount this fixture comes with)
  • Lens: PC Lens: Clear acrylic with optics, 3 Step MacAdam Ellipses, Built-In 6Kv Surge Protector
  • UNV: 120-277V 0-10V Dimmable
  • Optional For Purchase: Wire Guard, Shields (Bronze/White Finishes)
  • UL Listed, DLC-P Listed, RoHS Compliant, Approved For CA T24, IP Rating: Wet Location, FCC CFR 47, FCC Part 15, Subpart B:2017
  • 5 year limited factory warranty
