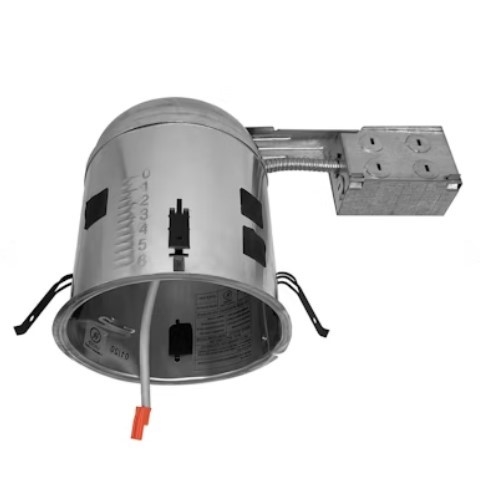

Part Number: C6-RM-ICAT-LED
Wattage - 150W Max.
Voltage - 120/277v
Bulb Type - LED Modules
Housing Length - 13 1/2"
Housing Width - 6 9/10"
Housing Height - 7 4/5"
- Remodel Arm: Single Wall formed aluminum construction. 5 1/2" height allows use in 2" x 6" joist construction. Four remodel clips secure housing and accommodate 1/2" and 5/8" ceiling material.
- Six (6) 1/2" trade size conduit knockouts with true pry-out slots
- All leads are #18AWG wire, the ground wire is connected to the bottom, and quick connectors are supplied on all leads.
- Accepts a wide range of non-metallic sheathed cables: The standard cable types used in lighting in both the U.S. and Canada. Allows wiring connections to be made outside the junction box.
- EnVisionLED 6" modules simply install with a plug-in 120/277V line voltage wiring connector (UL and CSA Listed Luminaire Disconnect). The LED quick-connect pre the high efficacy rating of the luminaire.
- Use with designated EnVisionLED modules for Energy Star qualification, Can be used for State of California Title 24 high efficacy compliance with designated LED module JA8, Can be used for International Energy Conservation Code (IECC) high efficacy compliance with designated LED module.
- IC and Airtight Can Certified under ASTM-E283 and listed UL/cUL 1598. May be used to meet insulated ceiling and restricted air-flow requirements such as: Washington State Energy Code, International Energy Conservation Code (IECC), New York State Energy Conservation Construction Code (NY-ECCC), State of California Title 24 "Recessed Luminaires in Insulated Ceilings", Not to be used in direct contact with spray foam insulation
- UL Labels: UL/cUL Listed 1598 Luminaire, UL/cUL Listed for Damp Location, UL/cUL Listed for Wet Location, with select trims (sold separately), UL/cUL listed for direct contact with insulation and combustible material
-
-
-
-
-
- Tech Specs
-
| -
-
-
|
-
-
-
| -
-
| -
-
-
- Material
-
| -
| Aluminum | -
-
-
- Construction Type
-
| -
| Remodel | -
-
-
| Wattage | -
| 150 Watt Max. | -
-
-
| Length | -
| 13 1/2" | -
-
-
- Knockouts
-
| -
| (6) 1/2" Trade Size Conduit Knockouts with True Pry-Out Slots | -
-
-
| Special Information | -
| Not To Be Used In Direct Contact With Spray Foam Installation | -
-
-
- Recessed Size
| -
6 Inch-
| -
-
-
- Bulb Type
| -
| 6" LED Modules | -
-
-
- Voltage Rating
| -
- 120/277V
| -
-
-
- Height
-
| -
| 7 4/5" | -
-
-
-
|
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Features
- Pre-Installed Factory Add-On's (Added Fee's/Lead Times Vary):
90 Minute Emergency Battery Backup - $172.99 (additional fee)
Please Call Our Customer Service Line For More Information: 1-877-235-0020
|
|
|
|
|
|
|
