Part Number: 15330
Part Number Description: L11WT9/C8/ABP/FCCT/U
Dimmable
Type A and B Plastic
Wattage - 11w (22w Fluorescent)

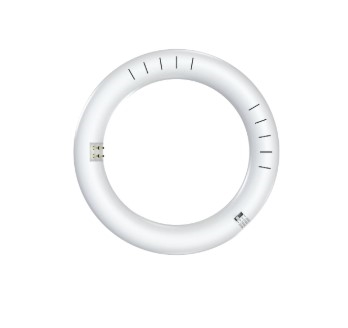

Bulb Type - 8" CIRCLINE LED T9
Selectable CCT - 35/40/50/65K
Lumens - 1,400lm
Rated Life (L70) - 50,000 hours
CRI - >82
Outer Diameter - 8.07" (205mm)
Inner Diameter - 5.7" (145mm)
- LED T8 Type A and B Dual Mode lamps easily replaces T8 Fluorescent lamps in two ways: either by working with existing fluorescent ballast (Type A) or bypassing the ballast and wiring directly to line voltage (Type B).
- Internal LED driver (when using the Type B installation method) means no need to replace a ballast resulting in long-term maintenance savings.
- No socket changes when using shunted sockets for Type A applications.
- For Type A installation, functions on most electronic T8 (instant and programmed) and battery backup ballasts.
- Instantaneous full light output upon power-up, frosted lens reduces visual glare
- Built-In Surge Protection Up To 1KV
- Wide illumination angle provides up to 330° of light distribution
- Frosted lens reduces visual glare and provides optimal heat dissipation on linear lamps
- FC8 and FC12 replacements available in rugged plastic to reduce breakage
- UL Listed for Damp Locations, FCC Compliant, RoHS Compliant, DLC Qualified
-
-
-
-
-
- Tech Specs
-
| -
-
-
|
-
-
-
| -
-
| -
-
-
| Material/Lens | -
| Plastic/Frosted | -
-
-
- Item Type
-
| -
| T9/Tube/CIRCLINE | -
-
-
| Equivalent | -
| 22 Watt Fluorescent | -
-
-
- Manufacturer
-
| -
- EiKO Lighting
| -
-
-
- Warranty
-
| -
| 5 Year Limited Factory Warranty | -
-
-
- Average Life (L70)
| -
- 50,000hrs
| -
-
-
| Lumens Per Watt | -
| 127 | -
-
-
| Item Style | -
| Type A and B | -
-
-
| Voltage Type | -
| 120-277V | -
-
-
| Selectable CCT | -
| 3500K/4000K/5000K/6500K | -
-
-
| Lumens | -
| 1,400LM | -
-
-
- Color Rendering Index (CRI)
-
| -
| >82 | -
-
-
| Wattage | -
| 11 Watts | -
-
-
-
|
|
|
|
