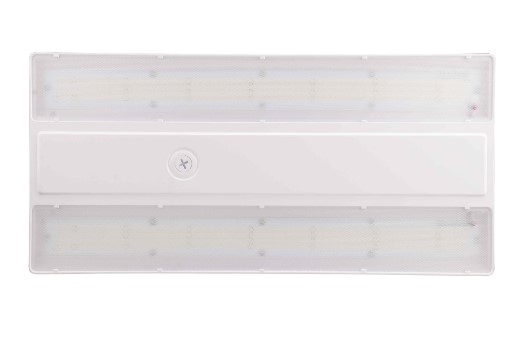

Part Number: 13402
Description Part Number: LH1-090-50-U
0-10V/Dimmable
Wattage - 90w
Voltage - 120-277v
Color Temp - 5000K
Lumens - 13,500lm
Beam Angle - 90°
Avg. Rated Life (L70) - 100,000 Hours
Equivalent - 4-Lamp 4FT T8/T12/Up To 250W HID
Finish - White
Height - 2 3/16" (55mm)
Length - 23" (585mm)
Width - 11" 280mm)
- Diecast aluminum style with molded heatsink fins for enhanced performance, ships with V-hook and aircraft cables
- Controls Ready makes adding controls quick and easy, Includes screw-in receptacle for Standalone sensors or Networked Lighting Controls
- Frosted polycarbonate lens eliminates glare, field and factory install battery backup options
- Manufacturer suggested mounting heights are up to 35', White powder coated die-cast aluminum housing, Surge protection: 6kV, 0-10V Dimming, dim-to-off, 12VDC Aux, 200mA max.
- PowerSet and FielCCeT Features allow for multiple lumen stops and color temperature settings in one fixture (select models), 120-347V model comes with External 10' cord (no plug)
- UL Listed, RoHS Compliant, FCC Compliant, ICES-005 Compliant, Damp Location Rated, DLC-P Qualified
- 5 Year limited factory warranty
-
-
-
-
-
- Tech Specs
-
| -
-
-
|
-
-
-
| -
-
| -
-
-
- Voltage Rating/Type
| -
- 120-277V
| -
-
-
| Beam Angle | -
90°
| -
-
-
| Wattage | -
| 90 Watts | -
-
-
| Lumens Per Watt | -
| 150 LM/W | -
-
-
- Lumens
-
| -
| 13,500LM | -
-
-
| Color Temp | -
| 5000K | -
-
-
- CRI
-
| -
| >80 | -
-
-
- Projected Life (L70)
| -
100,000 Hours-
| -
-
-
| Thermal | -
| -40° F to 122° F | -
-
-
- Lens
| -
| Impact-Resistant Frosted Polycarbonate - Eliminates Glare | -
-
-
-
|
|
|
|
