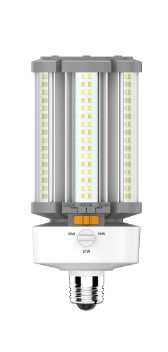

Part Number: 12708
Part Number Description: LPS36CC/8FCCT/U/E26
Selectable Wattage - 36/27/18w
Voltage - 100-277v
Selectable CCT - 30/40/50K
Selectable Lumens - 5,220/3,915/2,610lm
Base - Medium Screw (E26)
Rated Life (L70) - 50,000 Hours
Length - 7.75" (197mm)
Diameter - 3.35" (85mm)
- LED replacement for traditional HID wattage equivalent 100w MH to 70w HPS, lasts 3x longer
- Universal mounting position for 18-63W models, Vertical mounting position for 80W models and above
- Integral driver; eliminates need for external driver or ballast
- Plug-and-play external photocell or motion sensor available for additional lighting control; qualifies for DLC 5.1: Sold Separately!
- Safety cable provided for 80W, 100W, and 120W models
- FieldCCeT (CCT Selectable) and PowerSet (Power Selectable); allows for multiple "set-and-forget" color options
- Built-in 4kv surge protection included
- UL Listed For Dry/Damp Locations, RoHS Compliant, IP64 Rating, FCC, CA exempt
- 5 year factory warranty (limited)

-
-
-
-
-
- Tech Specs
-
| -
-
-
|
-
-
-
| -
-
| -
-
-
| Voltage Rating | -
| 100-277V | -
-
-
| Burning Position | -
| Universal | -
-
-
| Selectable Wattage | -
| 36 Watts/27 Watts/18 Watts | -
-
-
| Lumens Per Watt | -
| 127-143 | -
-
-
- Base Type
-
| -
- Medium Screw (E26)
| -
-
-
| Max Overall Length (MOL) | -
| 7.75" (197mm) | -
-
-
| Max Overall Diameter (MOD) | -
| 3.35" (85mm) | -
-
-
| Selectable Lumens | -
| 5,220lm/3,915LM/2,610LM | -
-
-
| Selectable CCT | -
| 3000K/4000K/5000K | -
-
-
- CRI
| -
| >80 | -
-
-
- Equivalent
| -
| 70 Watt High Pressure Sodium or 100 Watt Metal Halide | -
-
-
- Ambient Operating Temp Range
| -
| -30° C (-22° F) to 60° C (140° F) | -
-
-
| CRI | -
| >80 | -
-
-
-
|
|
|
|
 |
|
 |
|
