ELCO ERT66140BZ - 6" Ultra Slim LED Square Panel Light - 12W - 4000K - Bronze

CUSTOMER REVIEWS

Download The Spec Sheet

Price: $13.93

Qty:

Description

Technical Specs

Shipping Time

Part Number: ERT66140BZ

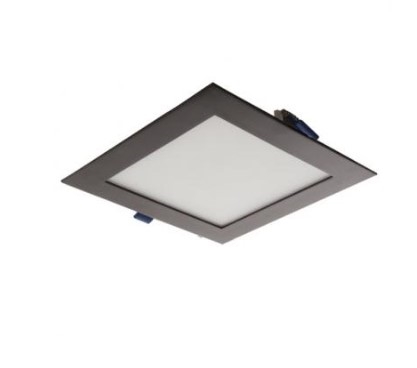

6" Ultra Slim LED Square Panel Light with 5-CCT Switch. This 6" ultra slim panel light is designed for quick and easy installation without a housing for both new construction and remodel applications. This IC-rated fixture can be installed indoors or outdoors and delivers a smooth output of 700 lumens, in 3000K or 4000K.

Triac/ELV Dimmable

Wattage - 12w
Voltage - 120v
Lumens - 800lm
Color Temp - 4000K
Rated Life - 50,000 hours
Finish - Bronze

Aluminum die-cast trim ring with durable powder coat finish
Designed to fit in plenums as shallow as 2"
Eliminates the need for housing
New construction application requires a mounting plate or frame
Remodel applications require no additional accessories
Suitable installation for t-grid and drop ceiling applications
Driver connects directly to 120V power supply
Replaces 70 watt incandescent
5 year factory warranty (limited)
ETL Listed for Wet Locations indoors or outdoors
Meets ENERGY STAR requirements
IC Airtight (ASTM E283-2004) for direct contact with insulation
CA JA8 Title 24 Compliant

Features

The ELCO 6" Ultra Slim LED Square Panel Light.
LED Driver
- Driver connects directly to 120V power supply. Includes driver and Jbox
- Isolated driver integrated inside aluminum remote box with two 7/8" knockouts with slots for pry-out
- IC rated driver and fixture are tested and approved for direct contact with insulation
- Standard input wattage is 12W, 58 lumens per watt. Replaces 70 watt incandescent
Features
- Polycarbonate lens diffuses light evenly throughout space with no LED pixelation
- Aluminum die-cast trim ring with durable powder coat finish preventing rust and paint cracking
- Plenum rated cable connector to connect from module to remote driver box
- Designed for super shallow ceiling plenums without any housing. Maximum hole size should not exceed 6 1/4" for this product
- High strength steel spring clip for easy installation. Hole cut out template provided for proper trim installation
- Works with 120V Triac and ELV type dimmers. Dims down to 10%
- For full list of dimmers, refer to ELCO ELM System Dimmer Compatibility list
Listings
- IC-Rated Airtight (ASTM E283-2004) for direct contact with insulation
- Meets ENERGY STAR requirements
- Indoor or Outdoor
- CA Title 24 Compliant
- ETL Listed for Wet locations
Specifications
- 12 Watts
- 800 Lumens
- 90+ CRI
