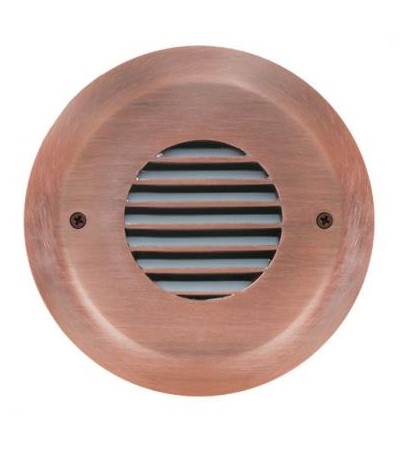

Part Number: ELST8530CP
ELCO's Ibis Collection consists of diecast wet location mini LED Step Lights which are offered in 2W or 3W, 3000K or 4000K, 120V or 12V AC/DC in round or rectangle with an Angled Louver, Open Frame Lens, or Scoop Faceplate in a sharp White, Black, Nickel, or Copper powder cost finish.
Wattage - 3w
Voltage - 12v
Color Temp - 3000K
CRI - 90+
Avg. Rated Life (L70) - 50,000hrs
Finish - Copper
Inner Diameter - 2 1/8"
Outer Diameter - 4 3/4"
Depth - 1 6/16"
- Single Piece Diecast aluminum faceplate design. Powder coated faceplate.
- Mounts in round junction box (4" octagon), Security screws for mounting faceplate to box included
- Louver face directs light downward to illuminate walkway with frosted lens to diffuse light. Diffused lens behind faceplate
- Wet Location (IP67) for indoor or outdoor use, Mounts in a standard single gang box
- Input Volts: 12V, 12V unit works with 12V AC or 12V DC supply
- 12V ELST85: Input of 12V requires an external transformer (12V units work with 12V AC or 12V DC supply)
| Tech Specs |
|---|
|
| | | Voltage Rating | 12V | | Item Type | Step Light - Mini | | Wattage | 3 Watts | | Finish | Copper | | Mounting | Round Junction Box (4" Octagon) | | Color Temperature | 3000K | | Special Information | Requires External Transformer | | IP Rating | Wet Location (IP67) | | CRI | 90+ | | Lens | Frosted/Diffused | | Warranty | ELCO Lighting | | Operating Temperature | -23° F to 113° F | | Material | Diecast Aluminum/Powder Coated Faceplate |
|
|
|
 |
|
 |
|
