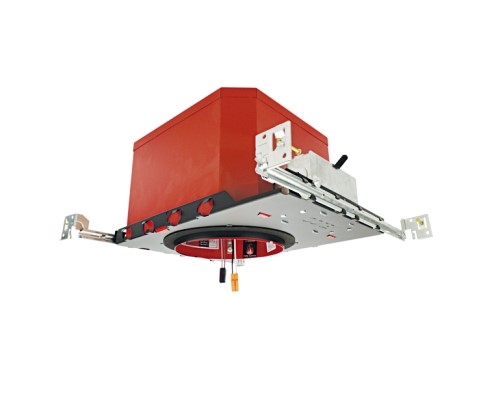

Features
- Construction:
- Double Wall IC Rated for direct contact with insulation. For use in IC and Non-IC Rated conditions.
- Housing adjusts in frame to accommodate up to 1 1/2" ceiling thickness. Suitable for T-grid and drop ceiling applications
- Airtight housing with gasket to restrict airflow in accordance with ASTM E-283 air-tight requirements
Installation:
- Designed for ceiling plenums where 2x8 joists or taller are used. High strength hanger bars can be easily nailed to joists.
- Pre Installed hanger bars with True Nail easy installation in regular lumber, engineered lumber, and laminated beams.
- Integral T-bar slots for easy installation in T-bars. Spans up to 24" and can be repositioned 90°. Score lines allow for tool-free hanger bar size reduction.
- Integral leveling flange allows for single-person installation while easily aligning the housings with the joists.
Junction Box:
- Positioned to accommodate straight conduit runs. Two (2) 3/4" knockouts, Seven (7) 1/2" Trade size conduit knockouts.
- One (1) 3/8" knockout, Four (4) Pry-out knockout slots for easy Romex installation.
Electrical:
- Optional 90 minute battery pack available with test indicator switch.
- Note that double wall housings require access from above ceiling for battery maintenance.
Compatible Lamps:
- Designed for use with ELCO 6" 0-10V LED Inserts
Listings:
- UL Listed for Damp Locations, UL Listed for Wet Locations with select trims
- UL Listed for direct contact with Insulation and Combustible Material
- UL Listed for Feed Through, CA Title 24 Compliant, Meets restricted air flow requirements (per ASTM E-283)
|
|
|
|
|
|
|
