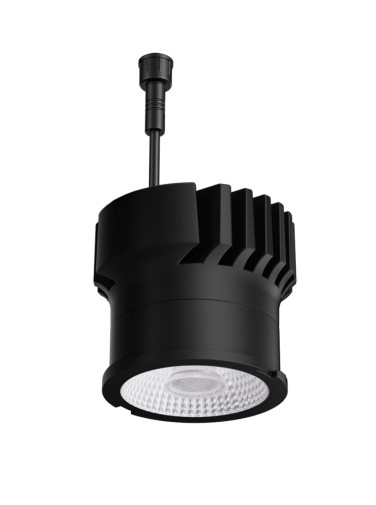

Part Number: EKCL21SDD
Designed to be installed without a recessed housing. Works with New Construction Frames or Remodel Power Packs and Koto Twist-On Trims.
Triac/ELV/0-10VDimmable
Color Temp - SunsetK
Lumens - Up To 950lm
Beam Angle - 38° (Standard/Installed)/25° and 60° Included
CRI - 95
Finish - Black
Base Diameter - 2 1/8"
Height - 2 3/8"
Lens Diameter - 2"
- IC Rated for Direct Contact with Insulation
- Canless Module works with Koto Frames and power packs
- Driver specified for 120V (Triac/ELV) or 120/277V (0-10V/Triac/ELV) dimming
- SunsetK: Sunset color temperature is ELCO's dim-to-warm LED Technology that allows the color temperature to become warmer as the product is dimmed. Sunset products start at 3000K and go as low as 1800K.
- Excellent color rendering 95+ CRI
- Works in 2", 3", 4", and 6" Canless Koto Twist-On trims
- Push and twist connector on module for easy installation
- Standard 38° Lens installed, 25° and 60° lens included with each module
- Optional Lens: 18° (EP731C)
- Optional: Louver (L45), Linear Lens (L46), Spread Lens (L47), Clear Lens (L48), Frosted Lens (L49), Color Shifter (L50)
- Lifespan of 50,000 hours L70
- Covered by U.S. Patents and Patents Pending
- 5 year limited factory warranty
- UL Listed Damp Location, UL Listed w/Wet Location Trims
- Title 24 JA8-2022-E Compliant

-
-
-
-
-
- Tech Specs
-
| -
-
-
|
-
-
-
| -
-
| -
-
-
- Dimmable
-
| -
| Driver Specified (0-10V/Triac/ELV) | -
-
-
- Item Type
-
| -
| LED Recessed Lighting | -
-
-
- Item Style
-
| -
| Canless Koto LED Module | -
-
-
- Manufacturer/Warranty
| ELCO Lighting/5 Year Limited Factory Warranty | -
-
-
| CRI | 95+ | -
-
-
| Finish | -
| Black | -
-
-
| Lumens | -
| Up To 950 Lumens | -
-
-
| Listed | -
| CA Title 24 JA8-2022-E Compliant, UL Listed Damp Locations, UL Listed Wet Locations With Select Trims | -
-
-
| Beam Angle | -
38° (Standard/Installed)/25° and 60° Included
| -
-
-
| Compatibility | -
| Works with Koto Frames and Power Packs | -
-
-
Color Temperature-
| -
| SunsetK | -
-
-
| Material | -
| Diecast Aluminum Body | -
-
-
-
|
|
|
|
