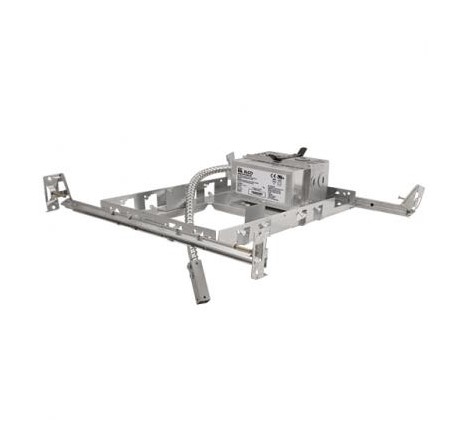

ELCO E5SQLFU11 - 5" IC Shallow Frame with Driver - 16W - 120/277V - Triac/ELV Dimming - Silver

ELCO E5SQLFU11
CUSTOMER REVIEWS


Alternative Views:


Download The Spec Sheet
Price: $27.93
EVERYDAY LOWEST PRICE REGARDLESS OF QUANTITY!


Free Shipping
Qty:

Description Technical Specs Shipping Time

Part Number: E5SQLFU11

5" IC Frame for the Maple System LED Light Engines. For use in insulated ceilings, Damp Location Rated and Wet Location Rated with applicable LED Light Engines. The perfect luminaire solution for commercial, hospitality, and multi-story applications. IC Rated for direct contact with insulation. Great for commercial or residential structures with shallow plenum spaces.

Triac/ELV/Dimming

Trims: ELCO 5" Maple System LED Light Engines. Sold Separately!

Wattage - 16W
Voltage - 120/277v
Lumens - 1,100 Maple System Frame

Height - 2 7/8"
Length - 12 1/2"
Width - 8"
Insert Opening - 5 3/4"

  • For use in insulated ceilings with ELCO 5" Maple System LED Light Engines: Sold Separately!
  • Dimmable Triac (1,100LM units), 0-10V (2,000LM units)
  • Optional: 90 Minute Emergency Battery Backup, 120/277 VAC, 60Hz: Sold Separately!
  • High Efficiency Driver mounted on J-Box for greater lumen output and easy access from below ceiling
  • Suitable for wet location covered ceiling only with E520/E524 Light Engines: Sold Separately!
  • 2 7/8" Height Allows for installation in shallow ceilings (when used with non-adjustable light engines)
  • 5 year limited factory warranty
  • UL Listed for Damp Locations/Wet Locations with select trims
  • UL Listed for Direct Contact with insulation and Combustible materials
  • UL Listed for Feed Through
  • Inserts meet restricted air flow requirements (Per ASTM-283)
  • Energy Star Certified
  • CA Title 24 JA8-2016.
Features

  • Construction/Installation
    ▪ Shallow IC Rated for direct contact with insulation with E52 Maple System LED Light Engines.
    ▪ Suitable for T-grid and drop ceiling applications.
    ▪ Driver mounted on junction box for cooler LED operation.
    ▪ Designed for shallow ceiling plenums where 2x4 joists or taller are used.

    Junction Box
    ▪ 16 gauge pre-wired galvanized steel junction box. 25 cubic-inch for a maximum of (8) #12 AWG wires. Positioned to accommodate straight conduit runs.
    ▪ Furnished with seven (7) 1/2" trade size conduit pry-out knockouts, Four (4) 3/4" pry-out knockouts,
    ▪ One (1) pry-out knockout and Four (4) Romex pry-outs with strain relief. Strain clamps to install or remove covers for easy access and grounding.

    Hanger Bars / New Construction
    ▪ Pre-installed hanger bars with True Nail facilitate easy installation in regular lumber, engineered lumber, and laminated beams. Integral T-Bars slots for easy installation in T-bars.
    ▪ Spans up to 24" and can be repositioned 90°. Score lines allow for tool-free hanger bar size reduction. Integral leveling flange allows for single-person installation while aligning the housing with joists.

    Electrical
    ▪ Driver is rated for 120V and 277V input (120/277V). High efficiency, high power factor >0.9 driver.

    Dimmability
    ▪ Flicker-free dimming, E5SQLFU11 works with Triac/ELV type dimmers, E5SQLFU20 works with 0-10V dimmers. Smoothly dims down to 10%. (Dimming range may vary depending on dimmer model).

    Compatible Trims
    ▪ For use in insulated ceilings with ELCO 5" Maple System LED Light Engines.

    Listing
    ▪ UL/cUL Listed for Damp Locations and Wet Location with select Light Engines, Listed for Feed Through
    ▪ Inserts meet restricted air flow requirements per ASTM E-283. CA Title 24 JA8-2016.
    ▪ Listed for Direct Contact with Insulation and Combustible Materials.
