Part Number: E2L14F27B
The Teak LED light engine is an IC rated diecast construction grade 2" LED downlight. Boasting an output up to 1,100 lumens - more than a traditional 75W MR16 halogen lamp. Style options, beam options, and color finish options offer maximum flexibility in design. Drivers and housings are specified separately for maximum flexibility per your project's needs. The patented engine offers auto release clips that make installation a breeze.
0-10V/Triac/ELV Dimmable - Depending on Driver used!
Wattage - 10.5-12.5w Voltage - 120/277v Color Temp - 2700k
Lumens - 850-1,100lm
Beam Angle - 38°
CRI - 93+
Trim Inner Color - Black
Trim Outer Color - White
Finish - Black/White
Base Diameter - 2 5/8"
Height - 4 1/2"
Lens Diameter - 2 1/8"
Overall diameter - 3 1/4"
- Dimmable ELV, Triac, or 0-10V depending on driver used
- Same LED light engine for 850 and 1,100 lumens (see housings)
- Excellent color rendering 93+ CRI
- UL Listed for Direct Contact with Insulation
- Hole cutout 2 5/8" (68 mm)
- Works with compatible ceilings up to 1 1/4"
- Height allows for use in ceilings with under 5" depth; ceiling thickness can be reduced from fixture depth
- 38° Standard beam (installed) with Optional 28° and 60°: Sold Separately!
- Wet Location rated for indoor and outdoor use
- 5 year factory warranty (limited)
- JA8-2016-E, UL, and Energy Star Qualified
- Life Span 50,000 Hours L70
- U.S. Pat. 10,125,959

-
-
-
-
-
- Tech Specs
-
| -
-
-
|
-
-
-
| -
-
| -
-
-
- Dimmable
-
| -
- Yes/0-10V/Triac/ELV
| -
-
-
- Item Type
-
| -
| LED Recessed Lighting | -
-
-
- Item Style
-
| -
| Teak LED Light Engine | -
-
-
- Manufacturer
| ELCO Lighting | -
-
-
| CRI | 93+ | -
-
-
| Trim Inner Color/Trim Outer Color | -
| Black/White | -
-
-
| Lumens | -
| 850LM/1,100LM | -
-
-
| Wattage | -
| 10.5-12.5 Watts | -
-
-
| Beam Angle | -
38°
| -
-
-
| Listed | -
| Damp Locations/Wet Locations | -
-
-
Color Temperature-
| -
| 2700K | -
-
-
| Warranty | -
| 5 Year Factory Warranty (limited) | -
-
-
-
|
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Features
- Features
-
- Optics: PC lens for even lumen distribution. Standard 38° lens. Optional: 28° (EP716C) and 60° (EP718C): Sold Separately!
-
- Construction: Diecast construction for lasting quality and great heat dissipation. High quality powder coat finish prevents rust and paint cracking.
-

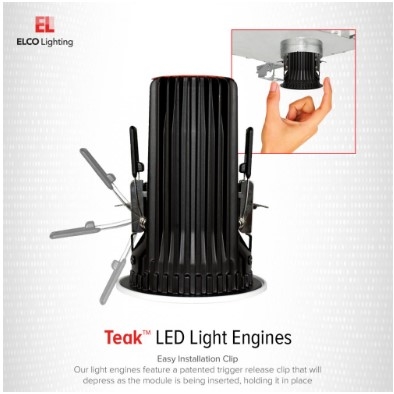

- Installation: All Teak LED Light Engines feature a patented trigger release clip that will depress as the module is being inserted, holding the module in place. Hole cutout size: 2 5/8" (68 mm). Teal LED Light Engines require a driver.
-
- Electrical: Requires Driver. Driver and housing can be specified with voltage (120V or 120/277V) and dimming (ELV/Triac or 0-10V/Triac/ELV): E2L08RIC, E2L08RICD, E2L11RIC, E2L11RICD
-
- Delivered Lumens: Depends on Housing/Driver Choice.
-
- LED Technology: Extremely accurate color rendering index of 93+. Efficacy of up to 104 lumens per watt. Lumen maintenance of 50,000 hours L70 life based on LM80. Superior Thermal management by utilizing diecast aluminum body as heat sink.
-
- Compatible Housings: Teak Light Engines are Compatible with 120/277V 0-10V/Triac/ELV or 120V Triac/ELV Teak System Housings: E2LAJ08ICA, E2LAJ08ICAD, E2L08ICAD, E2LAJ11ICA, E2LAJ11ICAD, E2L11ICA, E2L11ICAD
Listings cUL Listed, UL Listed for Damp Location, UL Listed for Wet Locations, UL Listed for Direct Contact with Insulation Energy Star Qualified, California Title 24 JA8-2016-E, Airtight per ASTM E-283Specifications 10.5-12.5 Watts 850-1,100 Lumens 2700K 93+ CRI
|
|
|
|
|
|
|
