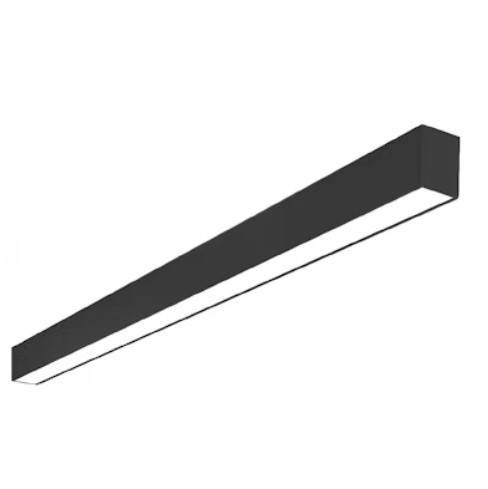

Part Number: LED-UDL2-2FT-3P25-5CCT-BL
0-10V/Dimmable
Selectable Wattage - 15/20/25w
Voltage - 120-277v
Lumens - 1,875/2,500/3,125lm
Selectable CCT - 27/30/35/40/50K
Beam Angle - 110°
Projected Life (L70) - 50,000 Hours
Finish - Black
Length - 2ft or 23.6"
Width - 2.08"
Height - 2.63"
- Construction: aluminum housing with frosted lens, Finished with corrosion free powder coat, Flicker Free
- Lens: Acrylic Frosted Lens Standard: efficiently emits the light through a high-quality acrylic lens, spreading it evenly and without causing glare
- Max Run: 600W off one power feed, Selectable Up Light: 20/15/10/0%
- 4-Way corner connector available (does not emit light) - Does not require wiring, plug-and-play connectors (coming soon/sold separately)
- 5-wire 6' power cord is included, 6' canopy suspension kit (One (1) power feed) included
- UL Listed, Approved For CA T24, FCC CFR 47, GCC Part 15, Subpart B:2017, IP Rating: Damp Location
- 5 year limited factory warranty

-
-
-
-
-
- Tech Specs
-
| -
-
-
|
-
-
-
| -
-
| -
-
-
- Voltage Rating/Type
| -
- 120-277V
| -
-
-
| Finish | -
| Black | -
-
-
| Selectable Wattages | -
| 15 Watts/20 Watts/25 Watts | -
-
-
- Dimmable
| -
| YES/0-10V | -
-
-
- Lumens
-
| -
| 1,875LM/2,500LM/3,125LM | -
-
-
| Selectable CCT | -
| 2700K/3000K/3500K/4000K/5000K | -
-
-
- CRI
-
| -
| >80 | -
-
-
- Projected Life (L70)
| -
50,000 Hours-
| -
-
-
| Thermal | -
- -4°F to 122°F
| -
-
-
- Lens
| -
| Frosted Acrylic | -
-
-
-
|
|
|
|
