Part Number: LED-SRD-23-50W-UD-RTRI-BL
0-10V/Dimmable
Wattage - 50w
Voltage - 120-277v
Lumens - 5,000lm (2,500lm Up/2,500lm Down)
Selectable CCT - 30/35/40K
Beam Angle - 110° (Up and Down)
Projected Life (L70) - 50,000 Hours
Finish - Black
Bottom Circle Diameter - 23"
Bottom Circle Height - 0.74"
Upper Circle height - 1.7"

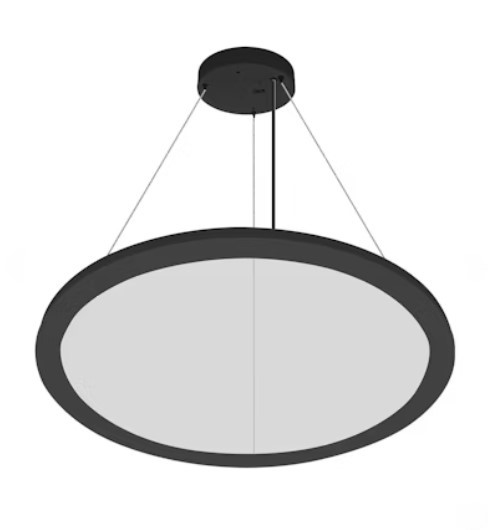

- The EnVisionLED ARCY-Line Suspended Circular Up/Down Fixture with aluminum housing finished with corrosion free powder coating.
- Lens: LGP Clear Diffuser: Creates a clear transfusion between frame and light, Lumens: 2,500lm Up/2,500lm Down, 23" Circumference
- Flicker Free, UNV: 120-277V 0-10V Dimmable, 50% Up Light and 50% Down Light
- Suspension installation only, 6' Canopy Adjustable Suspension Kit included, 5-Wire 6' power cord included
- UL Listed, Approved For CA T24, FCC CFR 47, GCC Part 15, Subpart B:2017, IP Rating: Damp Location
- 5 year limited factory warranty
-
-
-
-
-
- Tech Specs
-
| -
-
-
|
-
-
-
| -
-
| -
-
-
- Voltage Rating/Type
| -
- 120-277V
| -
-
-
| Finish | -
| Black | -
-
-
| Wattage | -
| 50 Watts | -
-
-
- Dimmable
| -
| YES/0-10V/Flicker Free | -
-
-
- Lumens
-
| -
| 5,000LM (2,500LM Up and 2,500LM Down) | -
-
-
| Selectable CCT | -
| 3000K/3500K/4000K | -
-
-
- CRI
-
| -
| >80 | -
-
-
- Projected Life (L70)
| -
50,000 Hours-
| -
-
-
| Thermal | -
- -4°F to 122°F
| -
-
-
- Lens
| -
| LGP Clear Diffuser | -
-
-
-
|
|
|
|
 |
|
 |
|
